OAuth in SCM

OAuth 2.1 authentication for MCP Gateway in SCM deployments — powered by Palo Alto Networks Cloud Authentication Service (CAS).

CAS (Cloud Authentication Service) is the OAuth 2.1 authentication method for MCP Gateway in SCM (Strata Cloud Manager) deployments. When an MCP client connects to a gateway running in SCM mode, CAS handles user authentication through Palo Alto Networks’ identity infrastructure instead of the AI Gateway’s built-in OAuth.

For standard deployments, use AI Gateway OAuth or External OAuth instead.

---

Overview

CAS bridges the MCP Gateway’s OAuth flow with Palo Alto Networks’ centralized authentication. Instead of users logging in with standard credentials, they authenticate through their organization’s identity provider (Entra ID, Okta, or on-prem Active Directory) via CAS.

How It Works

---

Prerequisites

Before CAS authentication works for your MCP Gateway:

1. CIE Directory Sync configured — Users must be provisioned into workspaces via CIE Directory Sync. CAS authenticates users, but CIE is what provisions them into the system. Without CIE sync, authenticated users cannot be resolved.

2. Authentication Profile selected — An Auth Profile must be selected in the CIE Directory Sync configuration. This profile determines which identity provider is used for the CAS login flow. Auth Profiles are managed in the CIE Authentication Profiles console.

CAS relies on CIE for user provisioning. If CIE Directory Sync is not configured, or no group-workspace mappings exist, users will authenticate successfully with CAS but fail to resolve — resulting in an authorization error.

See CIE Directory Sync for setup instructions.

---

Setup

CAS authentication is automatically enabled. No additional configuration is required on the MCP Gateway side — the gateway routes authentication through CAS.

What the Admin Needs to Configure

Step	Where	What
1. Connect a directory	CIE Console	Add your identity provider (Entra ID, Okta, AD) to CIE
2. Configure Directory Sync	AI Gateway → Admin Settings	Select the connected directory and user identity attribute
3. Select Auth Profile	AI Gateway → Admin Settings	Choose the CAS authentication profile for MCP auth
4. Map groups to workspaces	AI Gateway → Admin Settings	Map CIE groups to AI Gateway workspaces

Email claim is required. CAS identifies users by their email address. The identity provider must include the user’s email in the authentication claims. If the email claim is missing, the user cannot be resolved and authentication will fail.

Ensure that the User Identity Attribute selected in CIE Directory Sync (UPN or Mail) matches the email attribute returned by your identity provider during CAS authentication.

---

User Experience

First-Time Connection

When a user connects an MCP client to the gateway for the first time, the MCP client opens a browser window and the CAS login page is shown.

Step 1 — Authenticate with your identity provider

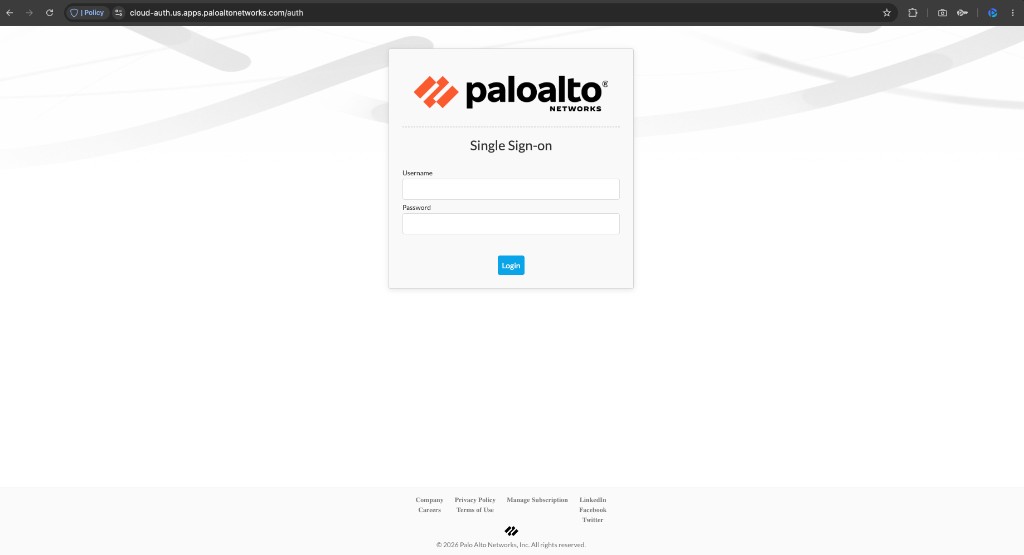

The user enters their organization credentials on the CAS Single Sign-on page. This page is hosted by Palo Alto Networks and connects to your configured identity provider.

The login page appearance may vary depending on your configured Authentication Profile and identity provider. The example below shows the default CAS login for a local directory. Organizations using external IdPs (e.g., Entra ID, Okta) will see their IdP’s login page instead.

Step 2 — Approve access to the MCP server

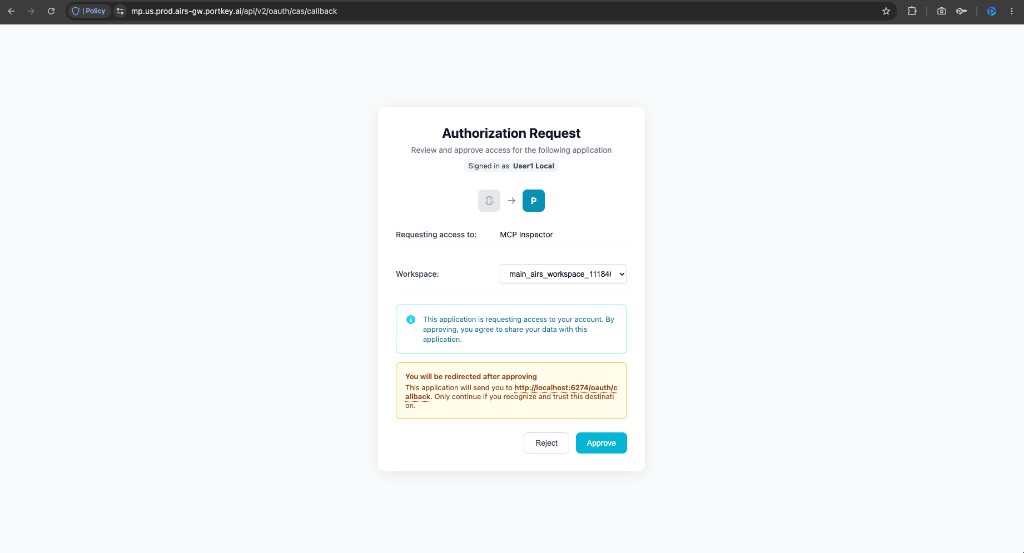

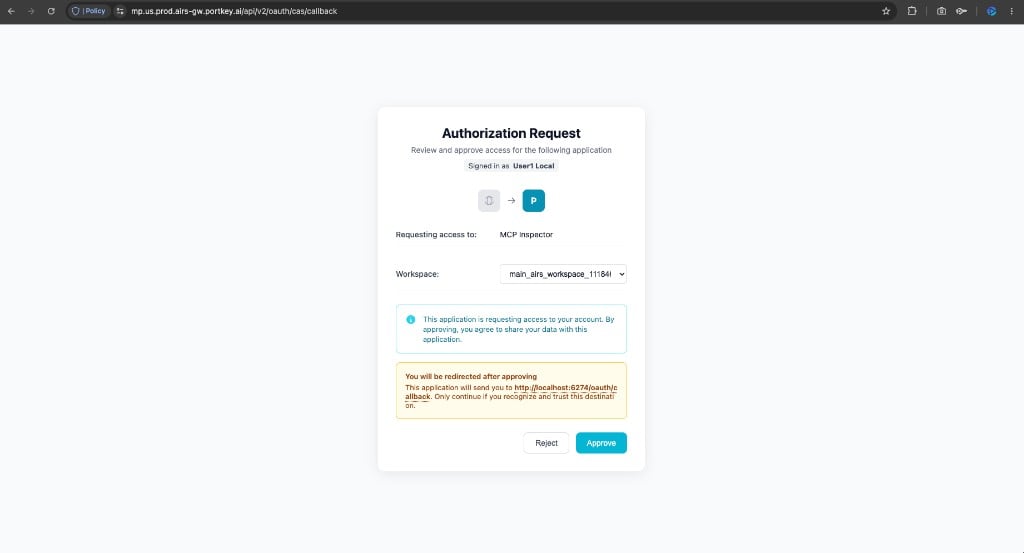

After authentication, the user is shown a consent page. It displays the MCP server being requested, the workspace it belongs to, and the redirect destination. The user can approve or reject the request.

If you are a member of multiple workspaces where the MCP server is provisioned, a workspace dropdown will appear on the consent page. Select the workspace you want the access token to be scoped to.

Once approved, the browser redirects back to the MCP client with an access token. The client can now make MCP requests.

Subsequent Connections

After the initial authentication, the MCP client uses refresh tokens to maintain access. Users are not prompted to log in again until the refresh token expires or is revoked. Approval is also remembered — subsequent connections to the same MCP server skip the consent page.

---

Comparison with Other Auth Methods

Feature	CAS (SCM)	AI Gateway OAuth	External OAuth
Identity provider	Palo Alto CAS → org IdP	AI Gateway accounts	Customer’s IdP
User provisioning	Via CIE Directory Sync	Self-service signup	Manual or SCIM
Consent flow	Yes	Yes	Depends on IdP
Token management	Automatic	Automatic	Customer manages
MCP client support	All standard MCP clients	All standard MCP clients	All standard MCP clients

---

Troubleshooting

Issue	Cause	Resolution
User authenticates but gets “authorization failed”	User not provisioned via CIE	Configure CIE Directory Sync and verify group-workspace mappings
”Email not found in claims” error	IdP not returning email attribute	Ensure the IdP includes the email claim. Verify the User Identity Attribute (UPN vs Mail) in CIE matches what the IdP returns
Consent page shows but redirect fails	Browser blocking the redirect	Check for browser extensions or corporate policies blocking redirects to custom URI schemes (cursor://, vscode://)
Token refresh fails	Refresh token expired or revoked	User must re-authenticate through the CAS flow

---

Related

Topic	Description
CIE Directory Sync	Provision users from CIE into AI Gateway workspaces (required for CAS)
SCM Architecture	Architecture guide for SCM deployment mode
OAuth	AI Gateway’s built-in OAuth for non-SCM deployments
External OAuth	Bring your own identity provider

---
