Secret References

Reference secrets stored in external secret managers like AWS Secrets Manager, Azure Key Vault, and HashiCorp Vault instead of storing them directly in Portkey.

Secret References let you point Portkey to credentials stored in your external vault. Instead of entering keys directly in Portkey, you create a reference, that tells Portkey where to fetch the value at runtime.

This keeps sensitive material in infrastructure you already control and audit.

Available on Enterprise plans only. Requires:

• Gateway version 2.2.4 or higher
• Backend version 1.12.0 or higher (for air-gapped deployments).

Supported Secret Managers

Manager	manager_type value
AWS Secrets Manager	aws_sm
Azure Key Vault	azure_kv
HashiCorp Vault	hashicorp_vault

How It Works

Secret references use a split architecture between Portkey’s control plane and data plane:

1. You create a secret reference in Portkey via the API. The control plane stores only the reference configuration (manager type, secret path, auth config) — never the actual secret value.
2. At runtime, the data plane (AI Gateway) reads the reference configuration and fetches the secret directly from your external manager.
3. The control plane never fetches or sees the final secret. The data plane caches the fetched secret value for 5 minutes to avoid hitting your secret manager on every request. After the TTL expires, the next request triggers a fresh fetch.

Creating a Secret Reference

From the Control Panel

1. From your admin panel, go to Secret References and click Create.

2. Configure the reference identity:

• Name: A name for this reference
• Slug: Unique identifier, auto-generated from name if not added. Pattern: ^[a-zA-Z0-9_-]+$
• Description: Optional context about this reference’s purpose

3. Choose your external vault from the supported options:

   • AWS Secrets Manager
   • Azure Key Vault
   • HashiCorp Vault

4. Select the authentication type for your chosen manager and add the required details.

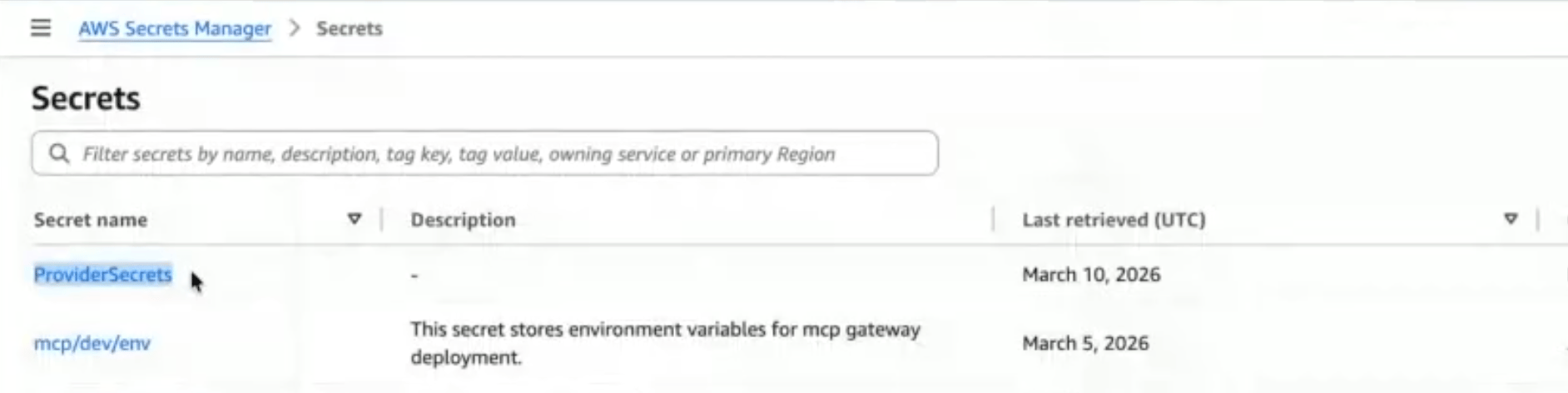

5. Secret Location:

   • Secret Path: Add the Secret name from the external manager

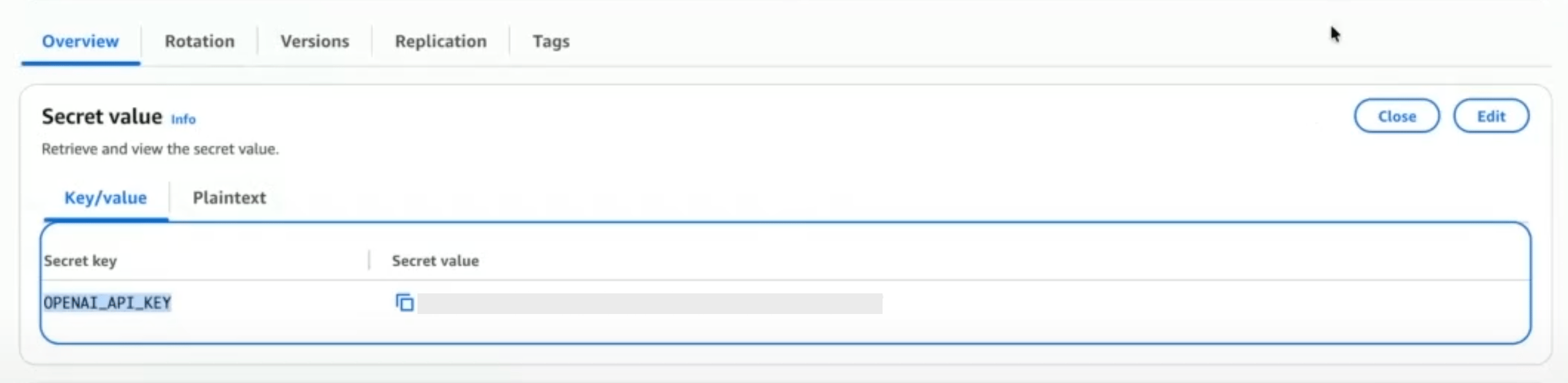

   • Secret Key (optional): Add the specific key within the secret

Via Admin APIs

Send a POST request to /v1/secret-references with the following body:

{
  "name": "prod-openai-key",
  "manager_type": "aws_sm",
  "auth_config": {
    "aws_auth_type": "accessKey",
    "aws_access_key_id": "AKIA...",
    "aws_secret_access_key": "wJalr...",
    "aws_region": "us-east-1"
  },
  "secret_path": "prod/openai/api-key",
  "secret_key": "OPENAI_API_KEY"
}

Field	Type	Required	Description
name	string	Yes	Display name (1–255 chars).
slug	string	No	Unique identifier. Auto-generated from name if omitted. Pattern: ^[a-zA-Z0-9_-]+$.
description	string | null	No	Max 1024 chars.
manager_type	string	Yes	aws_sm, azure_kv, or hashicorp_vault.
auth_config	object	Yes	Auth credentials for connecting to the manager. See Auth Config below.
secret_path	string	Yes	Path to the secret in the external manager.
secret_key	string | null	No	Specific key within the secret (when the secret holds multiple key-value pairs).
allow_all_workspaces	boolean	No	Default true. Grant access to all workspaces.
allowed_workspaces	string[]	No	Restrict access to specific workspace UUIDs or slugs. Mutually exclusive with allow_all_workspaces: true.
tags	object | null	No	Key-value metadata tags.

Updating a Secret Reference

Send a PUT request to /v1/secret-references/:id with only the fields you want to change. At least one field must be provided.

auth_config updates are merged with the existing config - you don’t need to resend the full object.

Setting allow_all_workspaces: true purges any workspace-specific mappings. Providing allowed_workspaces automatically sets allow_all_workspaces to false.

Deleting a Secret Reference

Send a DELETE request to /v1/secret-references/:id.

It will fail if the secret reference is currently in use by any integrations - remove those associations first.

Workspace Scoping

By default, a secret reference is accessible from all workspaces in your organisation. To restrict access:

• Pass allowed_workspaces with an array of workspace UUIDs or slugs when creating or updating the reference.
• This automatically disables allow_all_workspaces.

To revert to org-wide access, set allow_all_workspaces: true - this purges all workspace-specific mappings.

Auth Config

The auth_config schema depends on the manager_type you choose.

AWS Secrets Manager

Access Key

Field	Type	Required
aws_auth_type	"accessKey"	Yes
aws_access_key_id	string	Yes
aws_secret_access_key	string	Yes
aws_region	string	Yes

Assumed Role

Use this when Portkey should assume an IAM role in your account.

Field	Type	Required
aws_auth_type	"assumedRole"	Yes
aws_role_arn	string	Yes
aws_external_id	string | null	No
aws_region	string	Yes

Service Role

Uses Portkey’s own service role. Requires your secret’s resource policy to grant Portkey access.

Field	Type	Required
aws_auth_type	"serviceRole"	Yes
aws_region	string	No

Azure Key Vault

Entra (Service Principal)

Field	Type	Required
azure_auth_mode	"entra"	Yes
azure_entra_tenant_id	string	Yes
azure_entra_client_id	string	Yes
azure_entra_client_secret	string	Yes
azure_vault_url	url	Yes

Managed Identity

Field	Type	Required
azure_auth_mode	"managed"	Yes
azure_managed_client_id	string	No
azure_vault_url	url	Yes

Default Credentials

Field	Type	Required
azure_auth_mode	"default"	Yes
azure_vault_url	url	Yes

HashiCorp Vault

Token

Field	Type	Required
vault_auth_type	"token"	Yes
vault_addr	url	Yes
vault_token	string	Yes
vault_namespace	string	No

AppRole

Field	Type	Required
vault_auth_type	"approle"	Yes
vault_addr	url	Yes
vault_role_id	string	Yes
vault_secret_id	string	Yes
vault_namespace	string	No

Kubernetes

Field	Type	Required
vault_auth_type	"kubernetes"	Yes
vault_addr	url	Yes
vault_role	string	Yes
vault_namespace	string	No

Secret Mappings

Secret mappings allow integrations to dynamically resolve secrets from secret references at runtime, instead of storing credentials directly. The secret_mappings field is an optional JSON array accepted on create and update in Integrations.

Schema

Each entry in the secret_mappings array:

Field	Type	Required	Description
target_field	string	Yes	The field on the entity that should be populated from the secret reference. Must be unique within the array.
secret_reference_id	string	Yes	UUID or slug of the secret reference to resolve. Must belong to the same organisation and be accessible by the workspace.
secret_key	string | null	No	Override the secret_key defined on the secret reference. Use to pick a specific key from a multi-value secret.

From the Control Panel

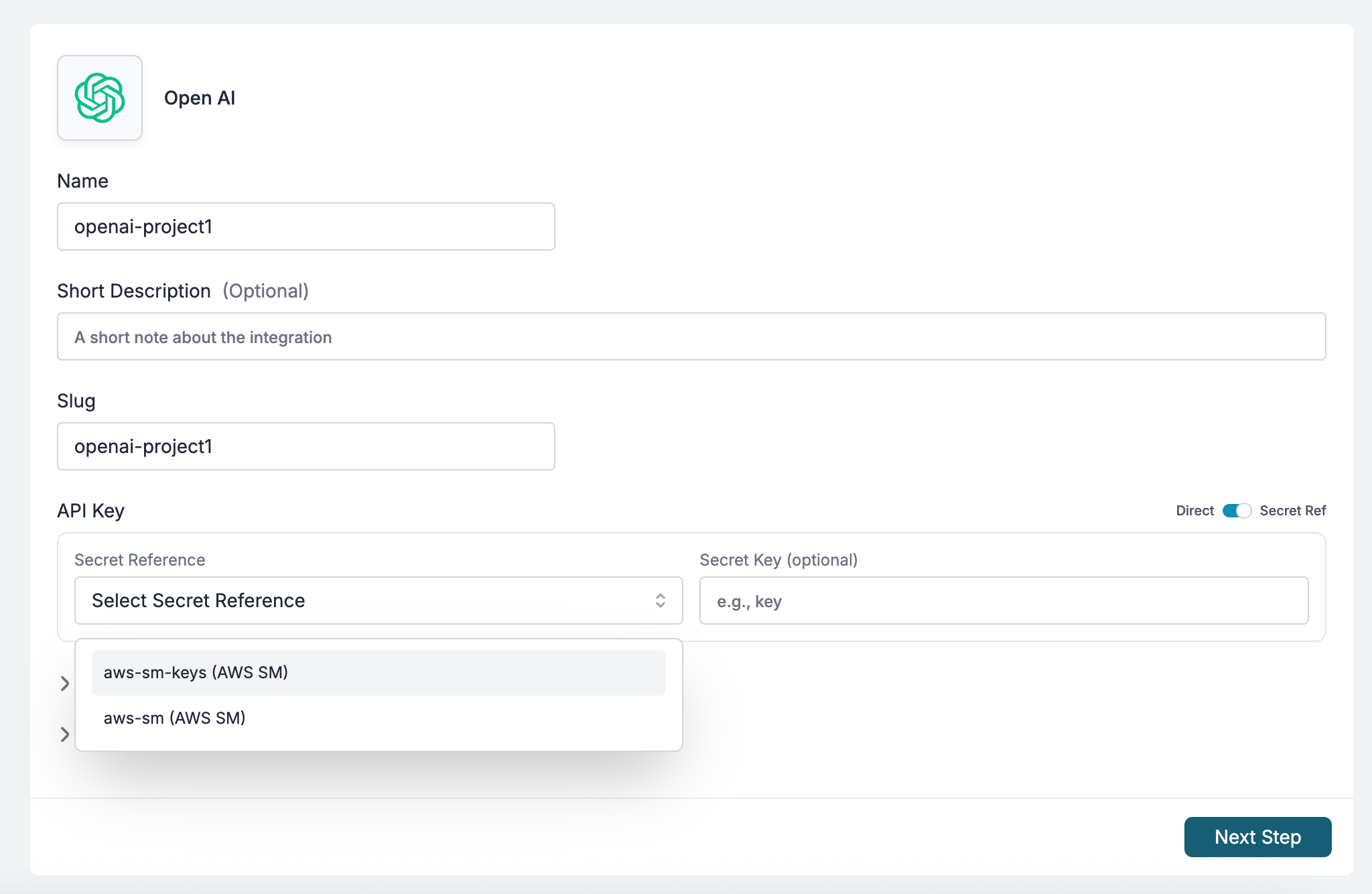

If you’re storing provider API keys in your vault, map your secrets in LLM Integrations:

1. While creating a new LLM integration (or editing an existing one), you’ll see a toggle. Switch to Secret Ref to use the key via your vault.

2. Select the secret reference. Optionally, provide a Secret Key if the reference contains multiple values.

Via Admin APIs

Valid target_field Values

Integrations (POST /v1/integrations, PUT /v1/integrations/:integrationId)

target_field	Description
key	The provider API key. When mapped, the key body field can be omitted.
configurations.<field>	Any provider-specific configuration field (e.g. configurations.aws_secret_access_key, configurations.azure_entra_client_secret).

Example

{
  "secret_mappings": [
    {
      "target_field": "key",
      "secret_reference_id": "my-aws-api-key"
    },
    {
      "target_field": "configurations.aws_secret_access_key",
      "secret_reference_id": "aws-credentials-ref",
      "secret_key": "secret_access_key"
    }
  ]
}

Validation Rules

• secret_mappings must be an array (if provided).
• Each target_field must be one of the allowed fields/prefixes for the entity type.
• No duplicate target_field values within the array.
• Each secret_reference_id must reference an existing, active secret reference in the same organisation.
• If the entity is workspace-scoped, the secret reference must be accessible to that workspace (either allow_all_workspaces: true or explicitly mapped).
• On create, target_field values with the configurations. prefix are auto-normalized — you can pass just the field name without the prefix and it will be prepended.

Behavior

• At gateway runtime, mapped fields are resolved from the external secret manager using the referenced secret reference’s auth_config, secret_path, and the mapping’s secret_key (or the secret reference’s default secret_key).
• When a target_field of key is mapped, the key field on the entity becomes optional during creation.
• Secret mappings are returned in GET responses for integrations.

---

Sensitive Field Masking

When you retrieve a secret reference via the API, sensitive auth_config fields are automatically masked. The original field is replaced with a masked_ prefixed version containing a truncated value.

Original Field	Masked Field
aws_secret_access_key	masked_aws_secret_access_key
aws_access_key_id	masked_aws_access_key_id
aws_role_arn	masked_aws_role_arn
aws_external_id	masked_aws_external_id
azure_entra_client_secret	masked_azure_entra_client_secret
vault_token	masked_vault_token
vault_secret_id	masked_vault_secret_id

Access Requirements

• Authentication: x-portkey-api-key header.
• RBAC Role: OWNER or ADMIN.

---

API Reference

Create Secret Reference

List Secret References

Retrieve Secret Reference

Update Secret Reference

Delete Secret Reference
