Enterprise Architecture

Comprehensive guide to Portkey’s hybrid deployment architecture for enterprises

Portkey Enterprise offers a secure hybrid deployment model that balances security, flexibility, and fast deployment timelines:

• Data Plane runs within your VPC, keeping sensitive LLM data and AI traffic in your environment
• Control Plane hosted by Portkey handles administration, configs, and analytics

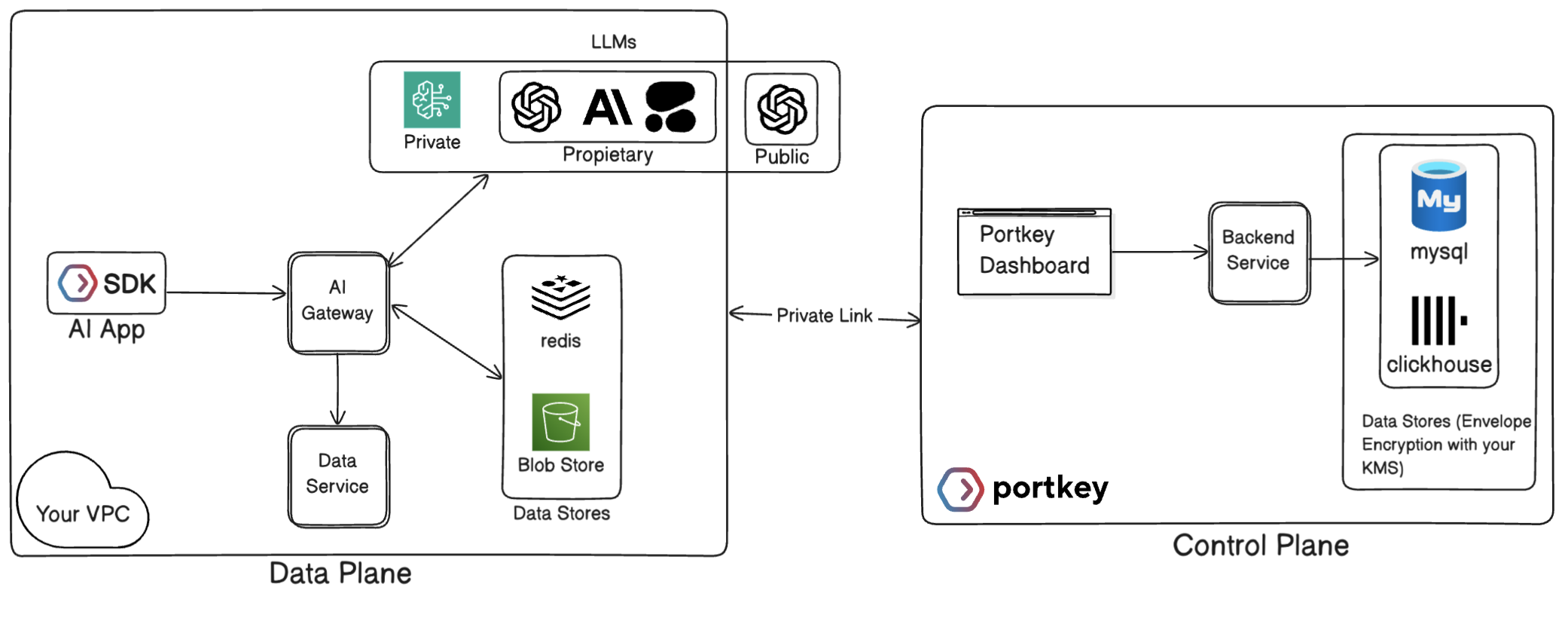

Portkey Enterprise Hybrid Deployment Architecture

Schedule an Enterprise Architecture Demo

Want to learn more about our hybrid deployment model? Schedule a personalized demo with our solutions team to see how Portkey Enterprise can fit your security and compliance requirements.

Core Architecture Components

Data Plane (Your VPC)

The Data Plane is deployed in your cloud environment and processes all your AI traffic:

Component	Description	Security Benefit
AI Gateway	Core engine that routes traffic across LLM providers and implements metering, access control, and guardrails	All LLM requests remain in your network perimeter
Cache Store	Local cache storage for gateway consumption	Eliminates runtime dependency on Control Plane
Data Store	Storage for LLM request/response logs	Keep sensitive LLM data completely in your environment

The AI Gateway runs as containerized workloads in your infrastructure, deployable via your preferred orchestration method (Kubernetes, ECS, etc.).

Control Plane (Portkey VPC)

The Control Plane is fully managed by Portkey and provides the administrative layer for your deployment:

• Hosts the web dashboard for managing configurations, tracking analytics, and viewing logs
• Maintains routing configs, provider integrations
• Stores non-sensitive metadata and aggregated metrics
• Automatically updates with new features and provider integrations without requiring changes to your infrastructure

Data Flow Between Planes

AI Traffic Flow (Fully Contained in Your VPC)

All LLM traffic stays within your network boundary:

1. Your application sends requests to the AI Gateway
2. The Gateway processes the request (applying routing, caching, guardrails)
3. The Gateway forwards the request to the appropriate LLM provider
4. Responses from LLMs return through the same path

Security Benefit: Complete isolation of sensitive prompt data and responses

Data Sync (Gateway ↔ Control Plane)

The AI Gateway periodically synchronizes with the Control Plane:

• Frequency: 30-second heartbeat intervals
• Data Retrieved: Prompt templates, routing configs, integrations, providers, API keys
• Process: Data is fetched, decrypted locally, and stored in the Gateway cache
• Resilience: Gateway operates independently between syncs using cached configs

Security Benefit: Continuous operation even during Control Plane disconnection

Analytics Flow (Gateway → Control Plane)

The Gateway sends anonymized metrics to the Analytics Store:

• Data Sent: Non-sensitive operational metrics (model used, token counts, response times)
• Purpose: Powers analytics dashboards for monitoring performance and costs
• Example: View sample analytics data

Security Benefit: Provides insights without exposing sensitive information

Log Management Options

Option A: Logs in Your VPC (Recommended for high-security environments)

• Logs stored in your environment’s Blob Store
• When viewing logs in Dashboard UI, Control Plane requests them from Gateway

Option B: Logs in Portkey Cloud

• Gateway encrypts and sends logs to Portkey Log Store
• No connections required from Portkey to your environment for viewing logs

Security Benefit: Flexibility to match your compliance requirements

Deployment Architecture

Portkey AI Gateway is deployed as containerized workloads using Helm charts for Kubernetes environments, with flexible deployment options for various cloud providers.

Infrastructure Components

Component	Description	Configuration Options
AI Gateway	Core container running the routing logic	Deployed as stateless containers that can scale horizontally
Cache System	Stores routing configs, integrations, providers, and more	Redis (in-cluster, AWS ElastiCache, or custom endpoint)
Log Storage	Persistence for request/response data	Multiple options (see below)

Storage Options

Object Storage

S3-compatible storage options including:

• AWS S3 (standard credentials or assumed roles)
• Google Cloud Storage (S3 compatible interoperability mode)
• Azure Blob Storage (key, managed identity, or Entra ID)
• Any S3-compatible Blob Storage

Authentication Methods

Cloud Provider IAM

• IAM roles for service accounts (IRSA) in Kubernetes
• Instance Metadata Service (IMDS) for EC2/ECS
• Managed identities in Azure environments

Infrastructure Requirements

• Kubernetes Cluster: K8s 1.20+ with Helm 3.x
• Outbound Network: HTTPS access to Control Plane endpoints
• Container Registry Access: For pulling gateway container images
• Recommended Resource Requirements:
  • CPU: 1-2 cores per gateway instance
  • Memory: 2-4GB per gateway instance
  • Storage: Dependent on logging configuration

Data Security & Encryption

Data Residency

Your Sensitive Data Stays in Your VPC

• All prompt content and LLM responses remain within your network
• Only anonymized metrics data cross network boundaries
• Log storage location is configurable based on your requirements

Advantages of Hybrid Architecture

Benefit	Technical Implementation	Business Value
Security & Compliance	- Sensitive data never leaves VPC - Configurable encryption methods - Flexible authentication options	- Meets data residency requirements - Supports regulated industries - Simplifies security reviews
Operational Efficiency	- No database management overhead - Automatic model config updates - Horizontally scalable architecture	- Low operational burden - Always up-to-date with LLM ecosystem - Scales with your traffic patterns
Deployment Flexibility	- Kubernetes-native deployment - Support for major cloud providers - Multiple storage backend options	- Fits into existing infrastructure - Avoids vendor lock-in - Customizable to specific needs
Developer Experience	- OpenAI-compatible API - Simple integration patterns - Comprehensive observability	- Minimal code changes needed - Smooth developer onboarding - Full visibility into system behavior

Technical Rationale

Why Maintain Transaction DB in Control Plane?

1. Real-time Model Updates: LLM providers frequently change model parameters, pricing, and availability. Centralizing this data ensures all gateways operate with current information.

2. Feature Velocity: AI landscape evolves rapidly. Control Plane architecture allows Portkey to deliver new features multiple times per week without requiring customer-side deployments.

3. Operational Efficiency: Eliminates need for customers to maintain complex database infrastructure solely for non-sensitive object management.

Why Cache Objects Locally?

1. Performance: Eliminates network latency during LLM requests by having all routing and configs data available locally.

2. Resilience: Gateway continues operating even if temporarily disconnected from Control Plane.

3. Security: Reduces attack surface by minimizing runtime external dependencies.

Sample Files

These samples demonstrate the typical data patterns flowing between systems:

Sample Log File (4KB)

Sample Metric File (3KB)
