JWT Authentication - Portkey Docs

This feature is available only on the Enterprise Plan of Portkey.

Portkey supports JWT-based authentication in addition to API key authentication. Clients send a JWT in x-portkey-api-key or Authorization: Bearer; the token is validated against JWKS configured on the organisation. Portkey Cloud validates JWTs on the control plane. Hybrid and air-gapped deployments can optionally enable gateway-local JWT authentication so the AI Gateway validates tokens locally instead of delegating every request to the control plane.

Validate JWT Token (Guardrail)

Optionally validate JWTs inside a config’s hook pipeline using the JWT guardrail plugin. This is separate from gateway-local JWT auth, which replaces API key validation at the gateway.

Configuring JWT Authentication

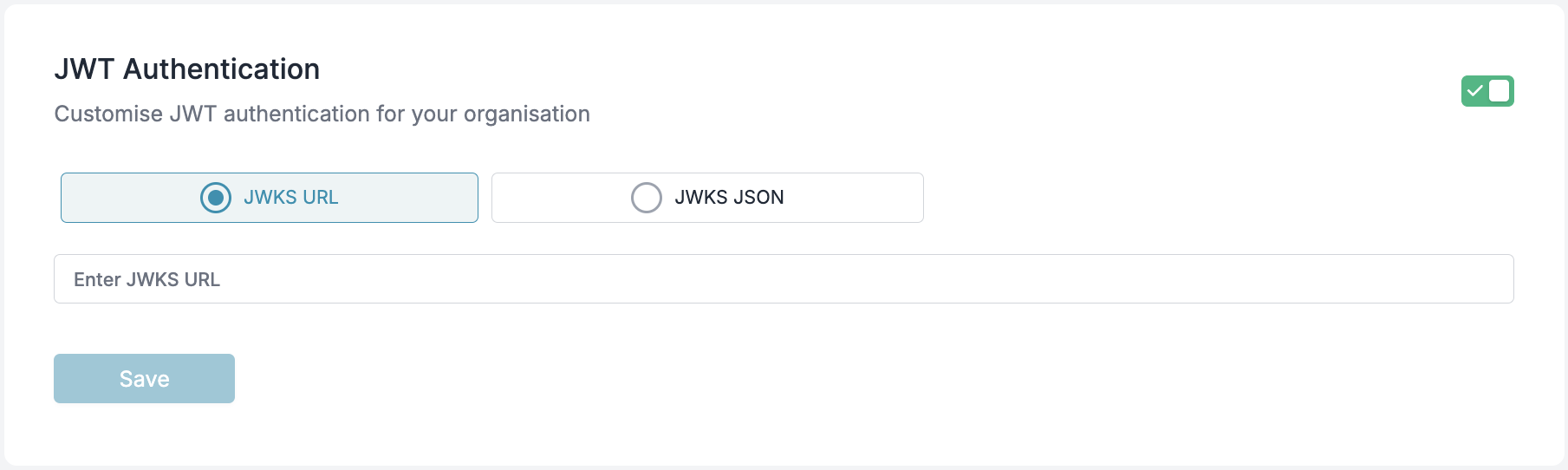

JWT authentication can be configured under Admin Settings → Organisation → Authentication.

JWKS Configuration

To validate JWTs, you must configure one of the following:

JWKS URL: A URL from which the public keys will be dynamically fetched.
JWKS JSON: A static JSON containing public keys.

Hard Requirements (Read First)

JWT Header (JOSE Header)

alg: Must be RS256. Symmetric algorithms like HS256 are not accepted.
typ: Must be JWT.
kid: Required. The value in the JWT header must match a kid in your JWKS.

Key Requirements

Key type: RSA
Key size: 2048 bits or higher
Your JWKS must expose only the public key parameters (e.g., kty, n, e, use, alg, kid). Do not include private key material.

JWT Requirements

Supported Algorithm

JWTs must be signed using RS256 (RSA Signature with SHA-256).

Required Claims

Your JWT payload must contain the following claims:

Claim Key	Description
`portkey_oid` / `organisation_id`	Unique identifier for the organization.
`portkey_workspace` / `workspace_slug`	Identifier for the workspace.
`scope` / `scopes`	Permissions granted by the token.
`exp`	Expiration time (as a UNIX timestamp, in seconds).

exp is mandatory. Tokens without exp or with expired exp are rejected. A small amount of clock skew is tolerated.
iat and/or nbf are recommended but optional.

On Portkey Cloud, portkey_oid and portkey_workspace are required. In gateway-local JWT auth, org and workspace can be resolved from deployment configuration when you use a standard IdP token - see Integration modes.

Optional Claims

Claim Key	Description
`defaults`	Object containing default settings applied to all requests made with this token. See Embedding Default Configs below.
`usage_limits`	Usage limits to enforce on requests made with this token.
`rate_limits`	Rate limits to enforce on requests made with this token.

User Identification

Portkey identifies users in the following order of precedence for logging and metrics:

email_id
sub
uid

End-to-End Working Example (Generate → Configure JWKS → Sign → Call)

The following example uses Node.js and the jose library to:

generate an RSA key pair,
create a JWKS containing the public key,
sign a JWT with the private key,
call Portkey with the JWT.

1) Prerequisites

# Node 18+ recommended
npm init -y
npm install jose

2) Generate RSA Keys, Create JWKS, and Sign a JWT (NodeJS)

Create generate-and-sign-jwt.mjs:

import { generateKeyPair, exportJWK, SignJWT } from 'jose';
import { randomUUID } from 'node:crypto';
import fs from 'node:fs';

const { publicKey, privateKey } = await generateKeyPair('RS256');

// Create a public JWK for JWKS
const publicJwk = await exportJWK(publicKey);
publicJwk.kty = 'RSA';
publicJwk.use = 'sig';
publicJwk.alg = 'RS256';
publicJwk.kid = randomUUID();

const jwks = { keys: [publicJwk] };
fs.writeFileSync('jwks.json', JSON.stringify(jwks, null, 2));

const now = Math.floor(Date.now() / 1000);

// Sign a JWT with the private key
const jwt = await new SignJWT({
  portkey_oid: '<YOUR_ORG_ID>',
  portkey_workspace: '<YOUR_WORKSPACE_SLUG>',
  scope: ['completions.write', 'logs.view'],
  email_id: 'user@example.com',
  sub: '<YOUR_USER_ID>',
  // Optional: embed default config and metadata
  // defaults: { config_id: 'pc-your-config-id', metadata: { environment: 'production' } }
})
  .setProtectedHeader({ alg: 'RS256', kid: publicJwk.kid, typ: 'JWT' })
  .setIssuedAt(now)
  .setExpirationTime(now + 60 * 60) // 1 hour
  .sign(privateKey);

fs.writeFileSync('token.jwt', jwt);

console.log('JWKS written to jwks.json');
console.log('JWT written to token.jwt');
console.log('kid:', publicJwk.kid);

Run it:

node generate-and-sign-jwt.mjs

This produces:

jwks.json: A JWKS containing your public key (with a kid).
token.jwt: A signed JWT ready to use with Portkey.

3) Add Your Public Key to Portkey (JWKS)

In the Portkey Admin UI:

Navigate to Admin Settings → Organisation → Authentication.
Choose either:
- JWKS URL: Host jwks.json at a reachable HTTPS URL and paste that URL.
- JWKS JSON: Paste the entire contents of your generated jwks.json.
Save changes.

Ensure the kid in your JWT header matches a key in the configured JWKS.

4) Call Portkey Using the Signed JWT

Send the JWT in the x-portkey-api-key header.

curl https://api.portkey.ai/v1/chat/completions \
  -H "Content-Type: application/json" \
  -H "x-portkey-api-key: $(cat token.jwt)" \
  -H "x-portkey-provider: @<YOUR_PROVIDER_SLUG>" \
  -d '{
    "model": "your-model-id",
    "messages": [
      { "role": "user", "content": "Hello!" }
    ]
  }'

If your JWT, JWKS, and claims are correct, the request will authenticate and succeed.

If you prefer Python for signing, you can generate the RSA key pair using your preferred method, ensure the public key is present in your JWKS with a matching kid, and use a library like PyJWT to sign with RS256 while setting the header { "alg": "RS256", "typ": "JWT", "kid": "<your-kid>" }.

Authentication Process

The client sends the JWT in x-portkey-api-key or Authorization: Bearer:
x-portkey-api-key: <JWT_TOKEN>
If x-portkey-api-key is absent, Authorization is used.
The gateway or control plane validates the JWT:
- Verifies the signature using the organisation JWKS.
- Checks token expiry.
- Ensures required claims are present.
If valid, the request is authenticated and user details are extracted for authorization and logging.
If invalid, the request is rejected. Common responses include 401 Unauthorized (invalid or expired token), 403 Forbidden (scope or workspace not allowed), 412 (usage limit exceeded), and 429 (rate limit exceeded).

On hybrid and air-gapped gateways with JWT_ENABLED=ON, validation runs locally on the gateway. Otherwise, JWT-shaped tokens are validated by the control plane.

Authorization & Scopes

Once the JWT is validated, the server checks for the required scope. Scopes can be provided in the JWT as either a single string or an array of strings using the scope or scopes claim.

Show Available Permission Scopes

Show Workspace Management

string

View workspace details

string

Modify workspace settings

string

List available workspaces

Show Logs & Analytics

string

Export logs to external systems

string

List available logs

string

View log details

string

Create and modify logs

string

Access analytics data

Show Configurations

string

Create new configurations

string

Update existing configurations

string

Delete configurations

string

View configuration details

string

List available configurations

Show Providers

string

Create new providers

string

Update existing providers

string

Delete providers

string

Duplicate existing providers

string

View provider details

string

List available providers

Show Workspace Users

string

Create new workspace users

string

View workspace user details

string

Update workspace user settings

string

Remove users from workspace

string

List workspace users

Show Other

string

Render prompt templates

string

Create and manage completions

Scopes can also be prefixed with portkey. (e.g., portkey.completions.write).

JWT tokens with appropriate scopes function identically to workspace API keys, providing access to workspace-specific operations. They cannot be used as organization API keys, which have broader administrative permissions across all workspaces.

Example JWT Header

{
  "alg": "RS256",
  "typ": "JWT",
  "kid": "<YOUR_KID>"
}

This matches the signing example (.setProtectedHeader({ alg: 'RS256', kid: publicJwk.kid, typ: 'JWT' })).
Ensure kid exactly matches one key in your configured JWKS.

Embedding Default Configs in JWT

You can embed a default config directly in the JWT payload using the defaults claim. This works the same way as attaching default configs to API keys, but lets you control it per-token - useful when different users or services need different routing rules. The defaults object supports the following fields:

Field	Description
`config_id`	The ID of the config to apply as the default for all requests made with this token.
`metadata`	A JSON object with custom metadata to attach to all requests.

When a JWT with a defaults.config_id is used, Portkey validates that the config belongs to the same organization before applying it. If the config is not found or doesn’t belong to the org, the default is ignored.

This follows the same precedence rules as API key default configs - if a user explicitly passes a config ID in their request headers, it will override the JWT default unless config override is disabled at the workspace level.

Example JWT Payload with Defaults

{
  "portkey_oid": "3ed1b666-7e3d-416a-9260-da10e1610d1a",
  "portkey_workspace": "ws-shared-8622d1",
  "scope": ["completions.write", "logs.view"],
  "email_id": "user@example.com",
  "sub": "user-123",
  "exp": 1735689600,
  "defaults": {
    "config_id": "pc-your-config-id",
    "metadata": {
      "environment": "production",
      "team": "backend"
    }
  }
}

Example JWT Payload

{
  "portkey_oid": "3ed1b666-7e3d-416a-9260-da10e1610d1a",
  "portkey_workspace": "ws-shared-8622d1",
  "scope": ["completions.write", "logs.view"],
  "email_id": "user@example.com",
  "sub": "user-123",
  "exp": 1735689600
}

Making API Calls with JWT Authentication

Once you have a valid JWT token, you can use it to authenticate your API calls to Portkey. Below are examples showing how to use JWT authentication with different SDKs.

NodeJS
Python
cURL
OpenAI Python SDK
OpenAI NodeJS SDK

Install the Portkey SDK with npm

npm install portkey-ai

import Portkey from 'portkey-ai';

const client = new Portkey({
  apiKey: '<JWT_TOKEN>', // Use JWT token instead of API key
  provider: '@<YOUR_PROVIDER_SLUG>'

});

async function main() {
  const response = await client.chat.completions.create({
    messages: [{ role: "user", content: "Hello, how are you today?" }],
    model: "your-model-id",
  });

  console.log(response.choices[0].message.content);
}

main();

Install the Portkey SDK with pip

pip install portkey-ai

from portkey_ai import Portkey

client = Portkey(
  api_key = "<JWT_TOKEN>", # Use JWT token instead of API key,
  provider = "@<YOUR_PROVIDER_SLUG>"
)

response = client.chat.completions.create(
  model="your-model-id",
  messages=[
    {"role": "system", "content": "You are a helpful assistant."},
    {"role": "user", "content": "Hello!"}
  ]
)

print(response.choices[0].message)

curl https://api.portkey.ai/v1/chat/completions \
  -H "Content-Type: application/json" \
  -H "x-portkey-api-key: <JWT_TOKEN>" \
  -H "x-portkey-provider: @<YOUR_PROVIDER_SLUG>" \
  -d '{
    "model": "your-model-id",
    "messages": [
      { "role": "user", "content": "Hello!" }
    ]
  }'

Install the OpenAI & Portkey SDKs with pip

pip install openai portkey-ai

from openai import OpenAI
from portkey_ai import createHeaders, PORTKEY_GATEWAY_URL

client = OpenAI(
    api_key="xx",
    base_url=PORTKEY_GATEWAY_URL,
    default_headers=createHeaders(
        api_key="<JWT_TOKEN>" # Use JWT token instead of API key
    )
)

completion = client.chat.completions.create(
  model="@<YOUR_PROVIDER_SLUG>/your-model-id",
  messages=[
    {"role": "system", "content": "You are a helpful assistant."},
    {"role": "user", "content": "Hello!"}
  ]
)

print(completion.choices[0].message)

Install the OpenAI & Portkey SDKs with npm

npm install openai portkey-ai

import OpenAI from 'openai';
import { PORTKEY_GATEWAY_URL, createHeaders } from 'portkey-ai'

const openai = new OpenAI({
  apiKey: 'xx',
  baseURL: PORTKEY_GATEWAY_URL,
  defaultHeaders: createHeaders({
    apiKey: "<JWT_TOKEN>" // Use JWT token instead of API key
  })
});

async function main() {
  const completion = await openai.chat.completions.create({
    messages: [{ role: 'user', content: 'Say this is a test' }],
    model: '@<YOUR_PROVIDER_SLUG>/your-model-id'
  });

  console.log(completion.choices[0].message);
}

main();

Troubleshooting “Invalid API Key” Errors

Wrong algorithm: Only RS256 is accepted; HS256 or others will fail.
Missing or mismatched kid: Your JWT header must include a kid that matches a key in the JWKS.
Incorrect header usage: Send the raw JWT in x-portkey-api-key, or use Authorization: Bearer <JWT>. Do not prefix the token with Bearer in x-portkey-api-key.
Expired or missing exp: The exp claim is required and must be in the future. Allow for small clock skew.
Private vs Public key mix-up: Your JWKS must contain only the public key parameters. The private key is used only for signing; never paste it into the JWKS JSON.
Wrong org/workspace identifiers: portkey_oid (or organisation_id) and portkey_workspace (or workspace_slug) must correspond to valid identifiers in your Portkey tenant.
Scopes missing for the API you call: E.g., chat completions needs completions.write.
Unreachable JWKS URL: If using a URL, it must be publicly reachable by Portkey. For static JSON, ensure the pasted JSON is valid and includes keys: [...].

All Invalid JWT errors are logged in the Audit Logs. Sample error message:

"jwtToken": "ey****bt",
"error": "Error Verifying JWT token: Signing Key Not Found",

Gateway-Local JWT Authentication

Gateway-local JWT authentication is available only on hybrid and air-gapped deployments.It requires gateway 2.5.0 or higher (Backend v1.13.0 or higher for air-gapped) with JWT_ENABLED=ON.

When enabled, your AI Gateway validates JWTs locally instead of sending every request to the control plane for authentication. This reduces latency and keeps authentication working even when the control plane is temporarily unreachable. If JWT_ENABLED is not ON, JWT-shaped tokens are validated by the control plane instead.

How it works

The client sends a JWT in x-portkey-api-key or Authorization: Bearer.
The gateway determines the organisation and workspace for the request.
The gateway verifies the token signature against your configured JWKS.
The gateway applies the same authorization, usage limits, rate limits, and policies as it would for a regular API key.

Integration modes

Choose the mode that matches how much control you have over your JWT issuer.

Mode A - You control the JWT issuer

You can add Portkey-specific claims to your tokens (portkey_oid, portkey_workspace, usage_limits, rate_limits, defaults, and others) and use the full JWT feature set described in this guide.

Mode B - Standard IdP token

Use this when tokens come from Okta, Auth0, Entra, Cognito, or another IdP whose token schema you cannot change. Portkey handles org, workspace, and budget configuration on the server side. If your IdP cannot include Portkey scopes in tokens, set JWT_LOCAL_AUTH_DEFAULT_SCOPES on the gateway instead.

What you need	How to configure it
Organisation	Set `ORGANISATIONS_TO_SYNC` to a single org UUID when the token does not include `portkey_oid` or `organisation_id`.
Workspace	Map users to workspaces with deployment settings, restrict the deployment to specific workspaces, or set an org-level default workspace. See Workspace resolution.
Scopes	Register gateway scopes (e.g. `completions.write`) in your IdP, or set `JWT_LOCAL_AUTH_DEFAULT_SCOPES` on the gateway when IdP scope changes are not possible. Both `completions.write` and `portkey.completions.write` are accepted.
Usage and rate limits	Configure limits on the workspace, or use workspace policies keyed off request metadata.
User attribution in logs	The gateway uses `email_id`, `sub`, or `uid` from the token for per-user logging and metrics.
JWKS	Point your org’s JWKS URL to your IdP’s discovery endpoint (e.g. `https://<tenant>/.well-known/jwks.json`) in Admin Settings → Organisation → Authentication.

Enable gateway-local JWT

Gateway environment variables

Variable	Required	Description
`JWT_ENABLED`	Yes	Set to `ON` to enable gateway-local JWT auth. Any other value uses control plane validation.
`ORGANISATIONS_TO_SYNC`	Yes	Comma-separated org UUIDs to sync from the control plane. Also restricts which orgs this gateway accepts.
`PORTKEY_CLIENT_AUTH`	Yes	Service auth token for the gateway to sync org, workspace, and deployment settings from the control plane.
`JWT_LOCAL_AUTH_DEFAULT_SCOPES`	No	Comma-separated gateway scopes to apply when the IdP token does not include `scope` or `scopes`. Use this when you cannot add Portkey scopes to tokens in your IdP.

Example:

JWT_LOCAL_AUTH_DEFAULT_SCOPES=completions.write,mcp.invoke

These variables are also documented in the hybrid deployment guides.

Organisation JWKS

Configure JWKS under Admin Settings → Organisation → Authentication:

JWKS URL (recommended) - your IdP’s public key endpoint, or
JWKS JSON - a static public key set

Authentication fails if JWKS is not configured for the organisation.

Required JWT claims (gateway-local)

Claim	Required	Notes
`scope` or `scopes`	Conditional	At least one valid scope, unless `JWT_LOCAL_AUTH_DEFAULT_SCOPES` is set on the gateway.
`portkey_oid` or `organisation_id`	Conditional	Required when `ORGANISATIONS_TO_SYNC` lists more than one org. With a single-org gateway (Mode B), the env var supplies the org.
`sub`	Conditional	Required when your deployment restricts which user IDs may authenticate.

Recommended optional claims

Claim	Purpose	Mode B (locked IdP)
`exp`	Token expiry	Usually already present on IdP tokens
`email_id`, `sub`, or `uid`	User identity for logging	`sub` is used automatically
`portkey_workspace` or `workspace_slug`	Target workspace	Resolve via deployment settings or org default workspace
`usage_limits`, `rate_limits`	Per-token limits	Configure on the workspace or via policies instead
`defaults`	Default config and metadata	Set default config on the workspace instead

Example token payloads

Mode A - full Portkey-aware token:

{
  "portkey_oid": "4f8d2c3b-1a9e-4b7c-8d2f-6a1b3c4d5e6f",
  "portkey_workspace": "engineering-workspace-slug",
  "sub": "user-42",
  "email_id": "alice@company.com",
  "scope": "completions.write mcp.invoke",
  "exp": 1735689600,
  "usage_limits": [
    {
      "id": "ul-1",
      "type": "cost",
      "credit_limit": 50,
      "status": "active"
    }
  ]
}

Mode B - minimal IdP token:

{
  "iss": "https://idp.example.com",
  "aud": "portkey-gateway",
  "sub": "user-42",
  "exp": 1735689600
}

If the token omits scope / scopes, set JWT_LOCAL_AUTH_DEFAULT_SCOPES on the gateway (e.g. completions.write,mcp.invoke). In Mode B, the gateway resolves the org from ORGANISATIONS_TO_SYNC and the workspace from your deployment configuration.

Gateway scopes

Scopes can be provided as a space-separated string (scope) or an array (scopes) in the token, or via JWT_LOCAL_AUTH_DEFAULT_SCOPES on the gateway. A portkey. prefix is optional.

Scope	Used for
`completions.read`	Read completions
`completions.write`	Chat completions, embeddings, and most AI routes
`logs.read`	Read logs
`logs.write`	Write logs
`logs.export`	Export logs
`prompts.render`	Render prompts
`virtual_keys.list`	List virtual keys
`mcp.invoke`	MCP invocation
`agents.invoke`	Agent invocation
`guardrails.invoke`	Guardrail invocation
`feedbacks.read`	Read feedbacks
`feedbacks.write`	Write feedbacks

Each API route requires a matching scope. For example, chat completions requires completions.write.

Organisation resolution

The gateway determines which organisation a token belongs to using this priority order:

portkey_oid claim in the token
organisation_id claim in the token
ORGANISATIONS_TO_SYNC - only when exactly one org UUID is configured

If ORGANISATIONS_TO_SYNC is set, the resolved org must be in that list.

Scenario	Result
Both `portkey_oid` and `organisation_id` are present	`portkey_oid` is used
No org in token, and exactly one org in `ORGANISATIONS_TO_SYNC`	That org is used
No org in token, and multiple orgs in `ORGANISATIONS_TO_SYNC`	Request rejected (401)
Token org is not in `ORGANISATIONS_TO_SYNC`	Request rejected (403)
Organisation not found	Request rejected (401)
JWKS not configured for the org	Request rejected (403)

After the org is determined, the gateway verifies the token signature against that org’s JWKS.

Workspace resolution

Workspace is determined after the token is verified, using token claims first and then deployment settings. From the token:

portkey_workspace
workspace_slug

From deployment settings (when the token has no workspace claim):

Setting	Effect
User allowlist	Restrict authentication to specific user IDs (`sub` values)
User-to-workspace mapping	Map each user ID to a workspace slug
Workspace allowlist	When enabled, only listed workspaces are allowed; the first listed workspace is used as the default
Org default workspace	Used when no workspace is resolved from the token or deployment settings

Contact your Portkey account team to configure deployment-level JWT settings such as user allowlists, user-to-workspace mappings, and workspace allowlists.

Usage limits, rate limits, and policies

JWT-authenticated requests are subject to the same limit and policy checks as API key requests. Limits can come from three places:

Source	Description
Token claims	`usage_limits` and `rate_limits` embedded in the JWT (Mode A)
Workspace settings	Limits configured on the resolved workspace
Workspace policies	Conditional budget policies based on request context

Each unique JWT is tracked separately for token-level limits. Workspace limits and policies apply on top of any token-level limits - all must pass before the request proceeds. Guidance by mode:

Mode A: Put per-user or per-session budgets in the JWT usage_limits claim. Use workspace limits and policies for shared team budgets.
Mode B: Configure all budgets and rate limits on the workspace or as workspace policies. For per-user splits within a shared workspace, use policies keyed off user metadata. For hard per-user isolation, map each user to a dedicated workspace.

Authentication flow

Troubleshooting gateway-local JWT

Symptom	Likely cause	What to check
Organisation not found	Token missing org claim on a multi-org gateway	Add `portkey_oid` to the token, or set a single org in `ORGANISATIONS_TO_SYNC`
Org not allowed	Org ID not in sync list	Add the org to `ORGANISATIONS_TO_SYNC` or fix the token claim
JWKS not configured	No public keys set for the org	Configure JWKS URL or JSON under Admin Settings → Organisation → Authentication
JWT verification failed	Bad signature, expired token, or wrong keys	Verify IdP signing config, `exp`, and JWKS
No valid scopes	Missing scopes in token and no gateway defaults	Add scopes to the token, or set `JWT_LOCAL_AUTH_DEFAULT_SCOPES` on the gateway
User not allowed	User ID restricted by deployment settings	Update deployment allowlist or token `sub`
Workspace forbidden	Workspace not allowed for this deployment	Use an allowed workspace or update deployment settings

Quick setup checklist

Both modes:

Set JWT_ENABLED=ON, PORTKEY_CLIENT_AUTH, and ORGANISATIONS_TO_SYNC on the gateway
Configure JWKS for your org in the Portkey admin UI
Ensure the gateway cache is enabled (required for hybrid and air-gapped deployments)

Mode A:

Issue JWTs with required scopes and optionally portkey_oid, portkey_workspace, usage_limits, rate_limits, and defaults

Mode B:

Set ORGANISATIONS_TO_SYNC to a single org UUID
Configure scopes in your IdP, or set JWT_LOCAL_AUTH_DEFAULT_SCOPES on the gateway if IdP scope changes are not possible
Set up workspace resolution (user mapping, workspace allowlist, or org default workspace)
Configure workspace-level usage limits, rate limits, and policies in Portkey

Caching & Token Revocation

Validated JWTs are cached until they expire to reduce validation overhead. On gateway-local auth, org and workspace settings are also cached locally and refreshed during control plane sync. If you rotate signing keys:

Publish the new public key in JWKS with a new kid.
Start issuing tokens signed by the new private key (with the new kid).
Old tokens remain valid until their exp is reached.

Validate JWT Token (Guardrail)

​Configuring JWT Authentication

​JWKS Configuration

​Hard Requirements (Read First)

​JWT Header (JOSE Header)

​Key Requirements

​JWT Requirements

​Supported Algorithm

​Required Claims

​Optional Claims

​User Identification

​End-to-End Working Example (Generate → Configure JWKS → Sign → Call)

​1) Prerequisites

​2) Generate RSA Keys, Create JWKS, and Sign a JWT (NodeJS)

​3) Add Your Public Key to Portkey (JWKS)

​4) Call Portkey Using the Signed JWT

​Authentication Process

​Authorization & Scopes

​Example JWT Header

​Embedding Default Configs in JWT

​Example JWT Payload with Defaults

​Example JWT Payload

​Making API Calls with JWT Authentication

​Troubleshooting “Invalid API Key” Errors

​Gateway-Local JWT Authentication

​How it works

​Integration modes

​Mode A - You control the JWT issuer

​Mode B - Standard IdP token

​Enable gateway-local JWT

​Gateway environment variables

​Organisation JWKS

​Required JWT claims (gateway-local)

​Recommended optional claims

​Example token payloads

​Gateway scopes

​Organisation resolution

​Workspace resolution

​Usage limits, rate limits, and policies

​Authentication flow

​Troubleshooting gateway-local JWT

​Quick setup checklist

​Caching & Token Revocation

Configuring JWT Authentication

JWKS Configuration

Hard Requirements (Read First)

JWT Header (JOSE Header)

Key Requirements

JWT Requirements

Supported Algorithm

Required Claims

Optional Claims

User Identification

End-to-End Working Example (Generate → Configure JWKS → Sign → Call)

1) Prerequisites

2) Generate RSA Keys, Create JWKS, and Sign a JWT (NodeJS)

3) Add Your Public Key to Portkey (JWKS)

4) Call Portkey Using the Signed JWT

Authentication Process

Authorization & Scopes

Example JWT Header

Embedding Default Configs in JWT

Example JWT Payload with Defaults

Example JWT Payload

Making API Calls with JWT Authentication

Troubleshooting “Invalid API Key” Errors

Gateway-Local JWT Authentication

How it works

Integration modes

Mode A - You control the JWT issuer

Mode B - Standard IdP token

Enable gateway-local JWT

Gateway environment variables

Organisation JWKS

Required JWT claims (gateway-local)

Recommended optional claims

Example token payloads

Gateway scopes

Organisation resolution

Workspace resolution

Usage limits, rate limits, and policies

Authentication flow

Troubleshooting gateway-local JWT

Quick setup checklist

Caching & Token Revocation
